19.10.0 Cloud Release Highlights
19.10.0 Cloud Release Highlights
Reporting - New IQL property for number of comments in a diagram
We’re excited to announce a new enhancement that makes it easier to track user engagement on your diagrams!
You can now report on the number of comments associated with each diagram. This feature allows you to quickly see where discussions are happening, helping you understand collaboration and interaction within your organization. The new IQL properties are:
openCommentsCount - count of unresolved comments
openComments - unresolved comments
commentsCount - count of all comments and replies
comments - all comments and replies
We’ve added a date property to both comments and openComments, giving you visibility into when comments were made. This makes it easier to track the timing of discussions and monitor recent activity on diagrams.

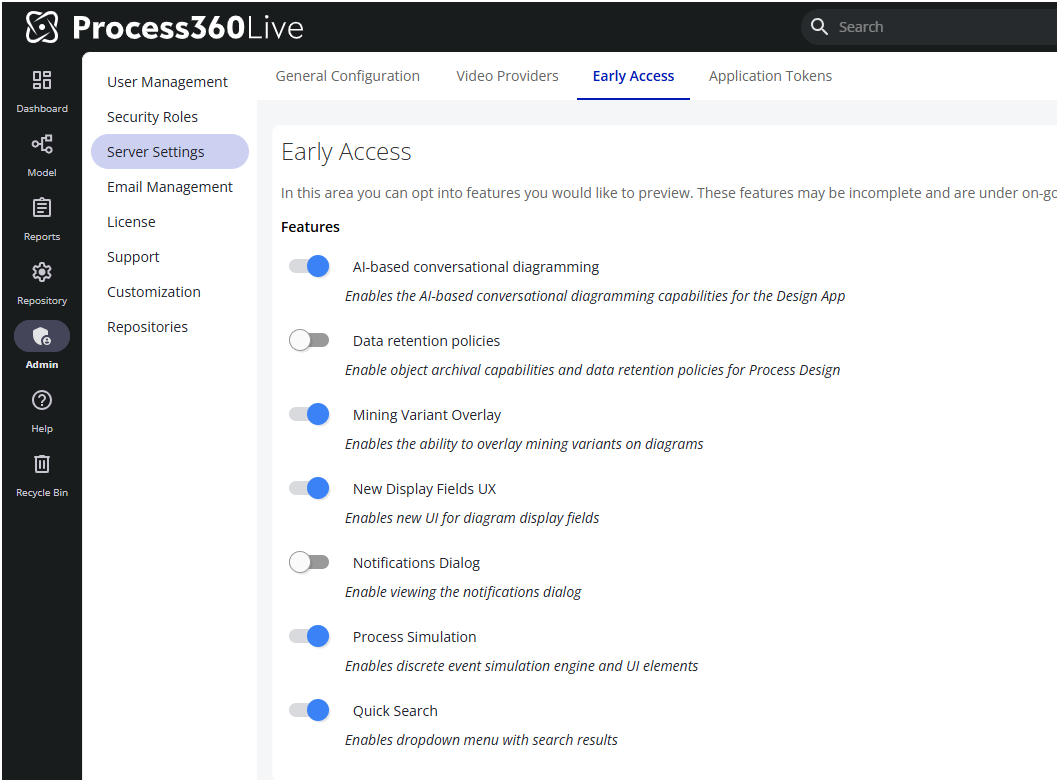

Early Access
New: - Internal Control System / ICS Risk Management
We are pleased to introduce ICS Risks, a specialized feature designed to help insurance companies and other regulated organizations capture, document, and manage risks within their Internal Control System (ICS) — fully aligned with industry-specific compliance and governance requirements. It gives you greater transparency and control over critical processes and associated risks.

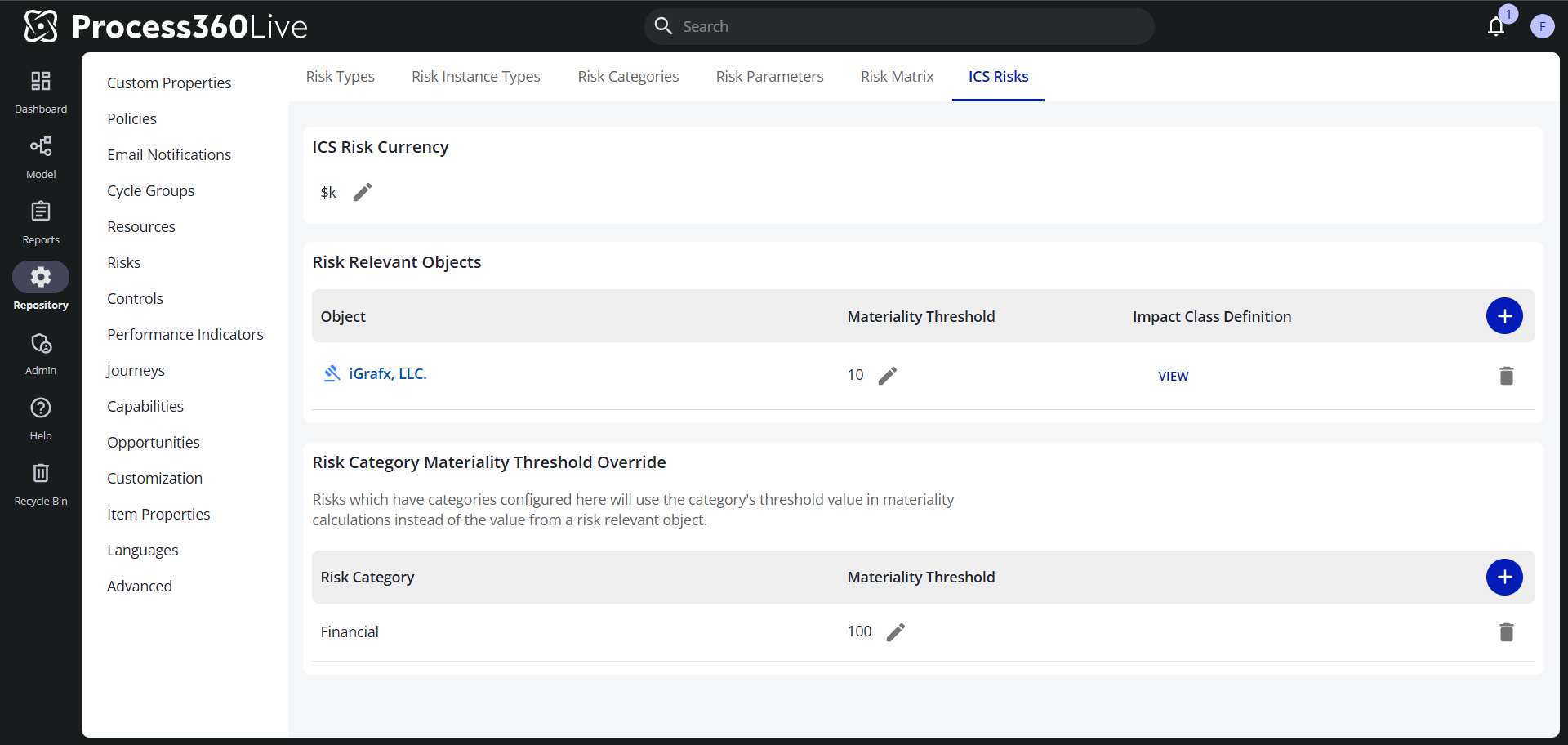

Configure your ICS risks

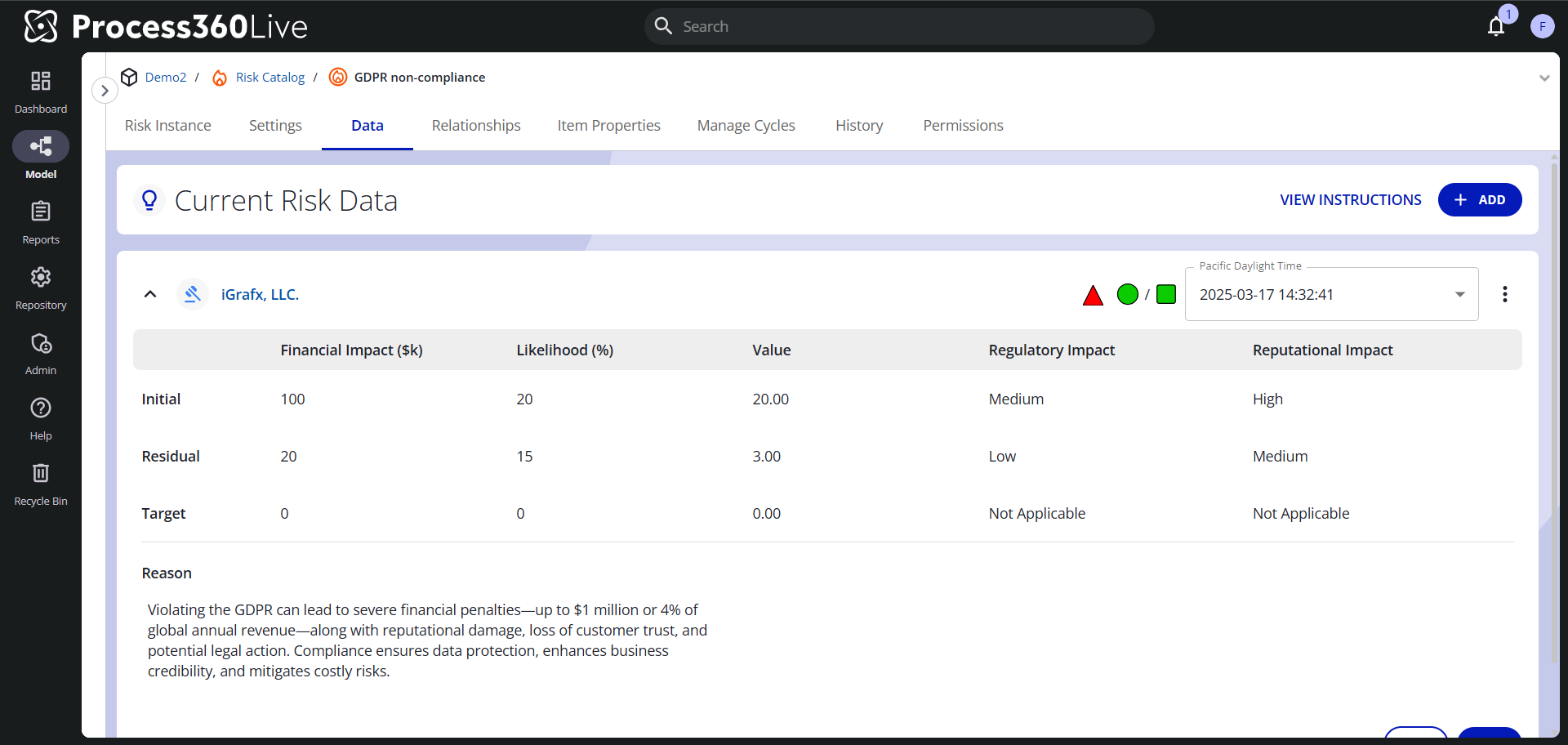

Add data to your ICS risks and start modeling
Go here to learn more: Internal Control System/ ICS Risk Management
Simulation Enhancements
Reusable custom functions
We’ve enhanced our Process Simulation by adding the ability to reuse custom functions. It allows users to define and reuse complex expressions more efficiently across multiple activities.
These custom functions can be called directly from simulation activities, reducing redundancy and improving maintainability.
For more details go to: Custom Functions
Support asking for interchangeable resources
Users can now request resources from multiple types, and the activity will start when the required number is available from any one type. Users can also request a total number of resources from multiple types, regardless of which type they come from. So, you can require all listed resources (an ‘AND’), Any of the Resources listed in order (an ‘OR’, where the list is ordered), or Any of the resources listed without any order (getting the longest available resource; an ‘OR’ with an unordered list). This makes resource allocation in simulations more realistic and adaptable.
Learn more about resources: Resources
Custom Distributions

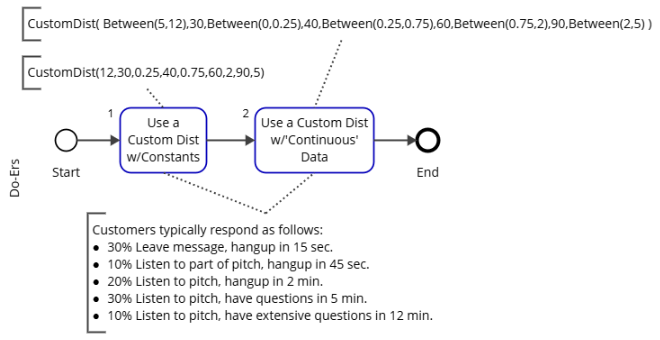

Our new Custom Distribution feature allows users to create weighted distributions; e.g., for generating cases or choosing task duration times. This makes it possible, for example, to model scenarios like generating 1 case 50% of the time, 2 cases 25% of the time, and 4 cases for the remaining 25% of the time. You may also model complex time distributions for an Activity, such as handling calls with a distribution of times. For example, the following diagram shows the ‘Task’ duration expression if you wanted discrete times returned, or continuous values in a range:

To find documentation on Custom Distributions, see CustomDist in: Statistical Functions
