SAML setup guide for the iGrafx Identity Solution

SAMLSAML An XML-based standard for exchanging authentication and authorization data between an identity provider and a service provider. Process360 Live supports SAML 2.0 for SSO. (Security Assertion Markup Language) provides single sign-on between service providers (applications that require authentication) and identity providers (applications that provide it). With SSOSSO An authentication scheme that lets users sign in once with an identity provider and access Process360 Live without re-entering credentials. on the iGrafx IdentityiGrafx Identity The iGrafx identity and access management service that brokers authentication between customer identity providers and Process360 Live components. Solution, the iGrafx IdentityiGrafx Identity The iGrafx identity and access management service that brokers authentication between customer identity providers and Process360 Live components. Solution is the service provider, and your Microsoft Entra ID, ADFS server, or Okta instance is the identity provider.

Overview​

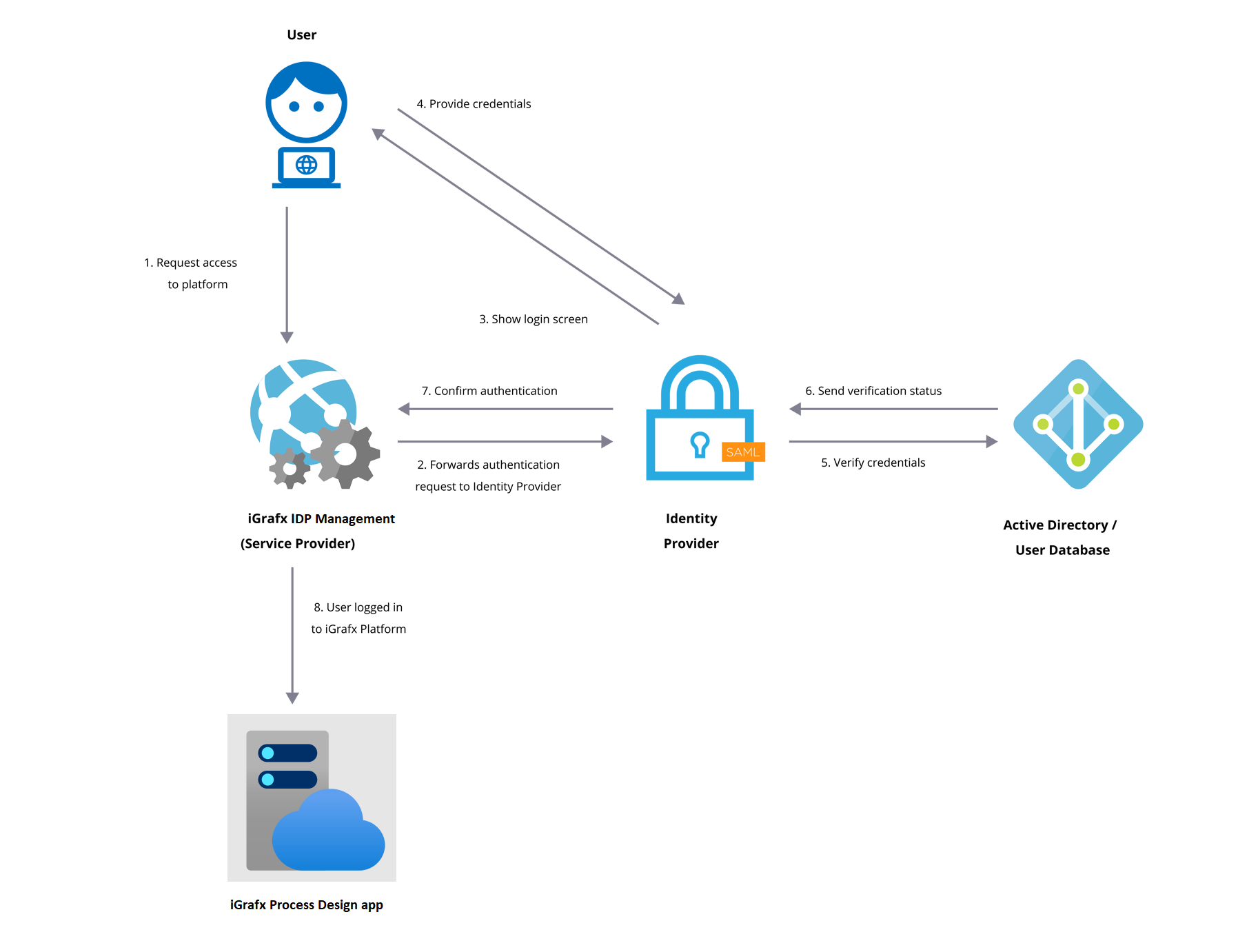

The SAML SSO flow between the identity provider and the iGrafx Identity Solution as service provider.

Requirements​

  • A SAMLSAML An XML-based standard for exchanging authentication and authorization data between an identity provider and a service provider. Process360 Live supports SAML 2.0 for SSO. 2.0–compatible identity provider.
  • A NameID format of email address.
  • The Tenant ID, which your iGrafx Support team provides.

Single sign-on isn't available for the iGrafx Desktop Client (FlowCharter). To connect the desktop client to Process DesignProcess Design The discipline of explicitly modeling business processes to document, analyze, and optimize them. In Process360 Live, process design is the authoring side that complements mining's data-driven view., use the API authentication method.

Related tasks & references​

Follow the guide for your identity provider:
