Managing Email

Email Management includes email server configuration settings and email templates, which are described in the following sections.

Email Settings

The Email Settings page lets you turn notifications from the iGrafx platform on or off, specify outgoing email and server settings, and test the configuration with a specific email address.

To access your settings:

  1. In the Administration area, choose Email Management
  2. In the right pane,, click the EMAIL SETTINGS tab

Be sure to save any changes by clicking the SAVE EMAIL SETTINGS  at the bottom, right of the page.

Email Notifications

Use the Email Notifications switch to turn email notifications on or off for the entire system.

Outgoing Email Settings

These settings specify the sender name, address, and a subject line prefix for mails generated by the iGrafx platform.

  • Sender Display Name: The name displayed for the sender. The default value is "iGrafx Platform".
  • Sender Email Address: The address that will appear in the email "From" field. Whether this address must actually exist depends on your mail server, but if not, you should still use a value that takes the form of a valid email address, such as noreply@ourmailserver.com.
  • Subject Prefix: The text specified here appears at the beginning of the Subject line. The default value is "[iGrafx Platform]".

Server Details

Set these fields to match your mail server's configuration.

  • SMTP/JNDI: Select SMTP to use a SMTP mail server directly, or select JNDI if you want to use a JNDI location that's configured for your SMTP server. If you select JNDI, a JNDI Location field replaces the SMTP configuration settings. Specify a valid JNDI location there.
  • Use SSL: Use this switch to turn Secure Sockets Layer encryption on or off for messages sent from the iGrafx platform.
  • Use TLS: Use this switch to turn Transport Layer Security encryption on or off for messages sent from the iGrafx platform.
  • Host Name: The name of the SMTP mail server.
  • Port: The UDP port to use for sending emails, set to 25 by default.
  • Authentication: Specifies the authentication scheme to use for the specified mail server. The default setting is Anonymous. If you select Credentialed, SMTP Login Name and SMTP Login Password fields appear. Specify values for these fields that are valid on the specified mail server.

Test Configuration

You can test your current SMTP or JNDI settings by specifying a valid email address (your own, most likely) in the Test Email Target Address field, and then clicking  SEND TEST EMAIL.

If the test is successful, the following message appears: "Test email was successfully sent."

If not, the following message appears: "The form could not be submitted because some of the inputs are not valid. Please correct the highlighted inputs." Also, the invalid inputs are highlighted in red, along with a message to enter a valid value for the offending setting.

Email Templates

The Email Templates page provides the ability to view and modify the platform's emails.

To access your templates:

  1. In the Administration area, choose Email Management
  2. In the right pane,, click the EMAIL TEMPLATES tab

Email Templates List

 All of the available outgoing email templates used by the application are displayed.  Modified templates have a check-mark in the Customized? column.  Also, customized templates have a Revert to Default button.


Email TemplatesTriggerRecipient
Acknowledgement Cycle Canceled EmailA cycle manager cancelled the acknowledgement cycleNominator*
Acknowledgement Cycle Paused EmailA cycle manager has manually paused the acknowledgement cycle OR there is a new approved version of the item OR the approved version of the item was revokedNominator*
Acknowledgement Cycle Resumed EmailA cycle manager has manually resumed the paused acknowledgement cycleNominator*
Acknowledgement Cycle Started EmailAcknowledgement cycle was started by a userCycle Participants, Nominator*
Approval Cycle Canceled EmailA cycle manager cancelled the approval cycleCycle Participants, Nominator*
Approval Cycle Finalized EmailAll participants have approved the item. Approval cycle is completed.Cycle Participants, Nominator*
Approval Cycle Rejected EmailOne participant vetoed/voted No. The approval cycle was rejected .Cycle Participants, Nominator*
Approval Cycle Started EmailNominator has started the approval cycle manually or the system automatically started a scheduled approval cycleCycle Participants*
Approved Version Change EmailNew approved version of the object became effectiveWatchers*
Attention Needed Email

The attention needed email is sent out if a nominator manually starts cycles on multiple objects at once

Cycle Participants*
Checkin EmailA new version of the item was checked in.Watchers*
Comment Deleted EmailComment was deletedWatchers*
Comment Reopened EmailComment was reopenedWatchers*
Comment Resolved EmailComment was resolvedWatchers*
Commented EmailCommented Watchers*
Cycle Started (Automatic) EmailCycle was scheduled to automatically start and the time has passedNominator if option was selected

in the cycle schedule

Cycle Started (Manual) EmailCycle was scheduled to be manually started and time has passedNominator if option was selected

in the cycle schedule

Cycle Started Error EmailCycle was supposed to started but does not meet all requirements -> Error Nominator if option was selected

in the cycle schedule

Cycle Started Warning EmailA cycle was scheduled for an automatic start but failed for non-exceptional reasons, for example if a cycle is already runningNominator if option was selected

in the cycle schedule

Endorsement Cycle Canceled EmailEndorsement cycle was canceled.Cycle Participants, Nominator*
Endorsement Cycle Finalized EmailAll participants have taken action. Endorsement cycle is completed.Cycle Participants, Nominator*
Endorsement Cycle Started EmailNominator has started an endorsement cycle or the system automatically started a scheduled approval cycleCycle Participants*
Invitation EmailIf administrator created a new user and selects to send an invite email or if administrator clicks "Send invite email" on a group User who got invited
Multiple Cycle Reminders EmailIf more than one running cycle requires to remind a user to take action on the same day, this email will be sent out instead of separate emails for each cycle. This email is automatically sent by the system.Cycle Participants*
Review Cycle Canceled EmailReview cycle was canceledCycle Participants, Nominator*
Review Cycle Finalized EmailAll participants have reviewed the item. Review cycle is completed.Cycle Participants, Nominator*
Review Cycle Started EmailReview cycle cycle was startedCycle Participants*
Test EmailSend Test Email button under  Administration → Email Management → Email Settings was clickedEmail address entered for the test
Upcoming Cycle (Automatic) EmailNotifying the scheduling user of an upcoming cycle they set up, and that it will automatically start a the given timeNominator if option was selected
Upcoming Cycle (Manual) EmailNotifying the scheduling user of an upcoming cycle they set up, and that they will need to take action in the futureNominator if option was selected

*Recipients are configured under Repository → Email Notifications

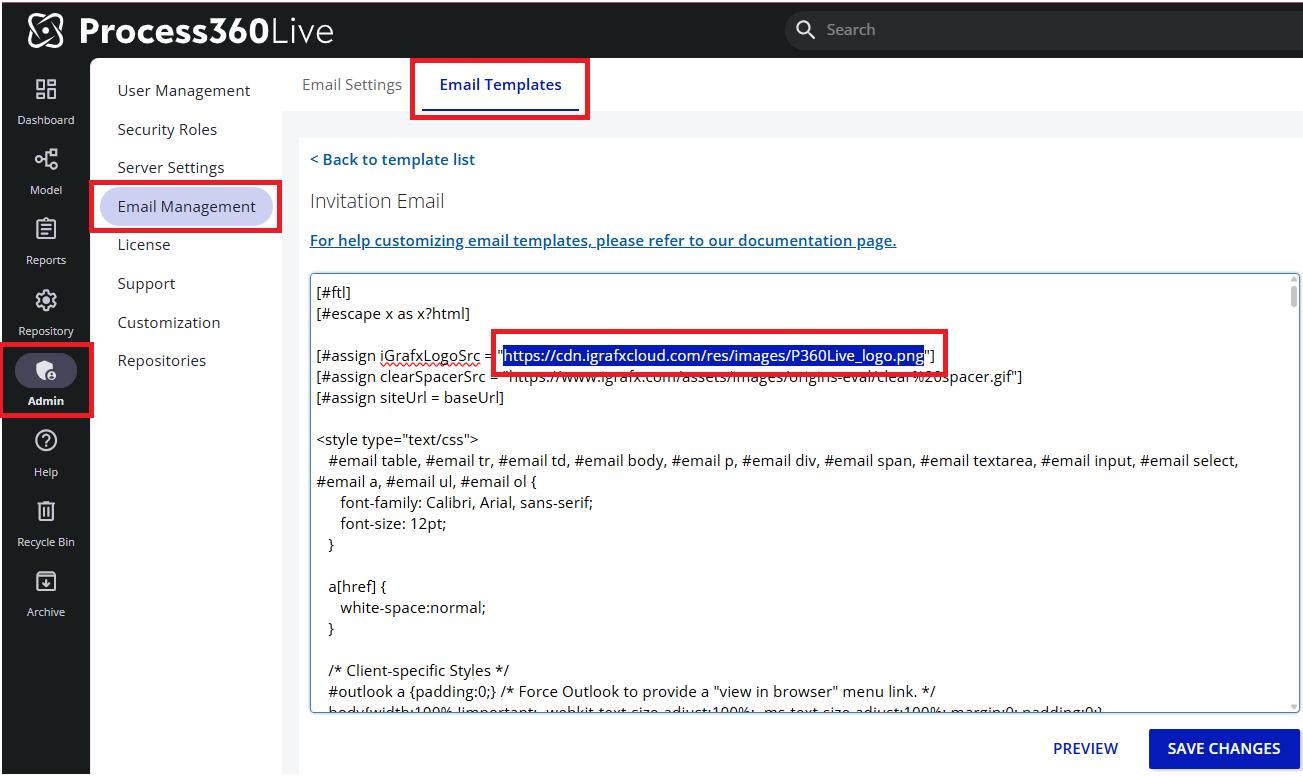

Edit Email Template

You can edit any of the email templates by first clicking on the template name in the list.  A text editor will allow you to modify its contents.  The iGrafx platform uses Freemarker Templates to generate email content when sending email notifications.  Modifications to these email templates will require some basic understanding of Freemarker.  Documentation can be found here:  Freemarker Documentation.

Clicking on the Preview button will provide a close approximation of what the actual email will look like.  If there are any errors with the template, the error message will be displayed, allowing you to correct any mistakes caused by any modifications.

Initially the Preview will render in your chosen language.  However, there is a language selector that allows you to change and preview the template in other languages (limited to the languages that are supported by the application).

Once you are done editing the template, you can either chose to SAVE CHANGES (lower, right of the page), or click on the "< Back to template list" link (near the top of the page).  If changes are saved, then this newly saved customized template will now be used for that email.
