Customize appearance

Give one repository its own look. These settings apply to pages of this repository; the platform-wide equivalents live in Customizing the iGrafx Platform's Appearance.

Prerequisites​

Steps​

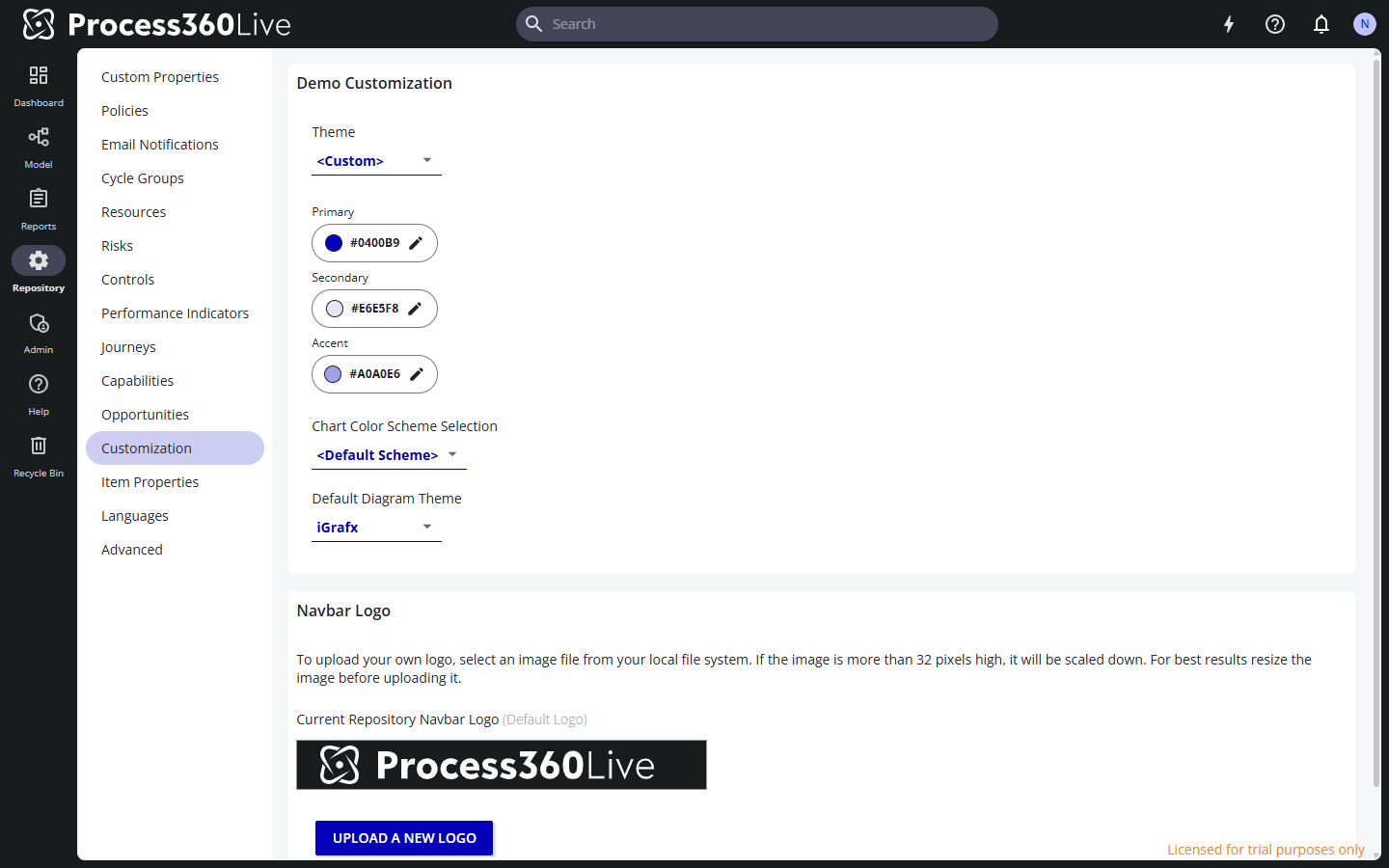

In the Repository area, select Customization. Changes save as you make them.

Choose a theme​

In the Theme dropdown — each option carries a swatch of its color:

  • Global — inherit the theme set platform-wide, named in the option. This is the default.
  • A named theme — use that theme for this repository, overriding the platform setting.
  • Custom — pick a single Brand color. Every shade the app uses, in light and dark areas alike, is generated from that one color, and the page warns when a color is too light for readable white text.

A preview beside the settings shows your choices on components, charts, and the diagram theme as you change them.

Choose a chart color scheme​

In the Chart Color Scheme Selection dropdown, pick the scheme charts in this repository use — Global inherits the platform default, named in the option. Schemes are created platform-wide — see Customizing the iGrafx Platform's Appearance. The scheme does not affect chart colors that were set manually on the chart itself.

Choose a default diagram theme​

In the Default Diagram Theme dropdown, pick the theme new diagrams start with. Existing diagrams keep their theme.

Under Navbar Logo, select an image file from your local file system to replace the logo at the top left of this repository's pages. An image more than 32 pixels high is scaled down, so resize it before uploading for best results. Delete the custom logo to return to the default.
