Enable the Microsoft sign-in button

With Azure AD, you can add a Microsoft button to the sign-in page so users don't have to type their email address to sign in.

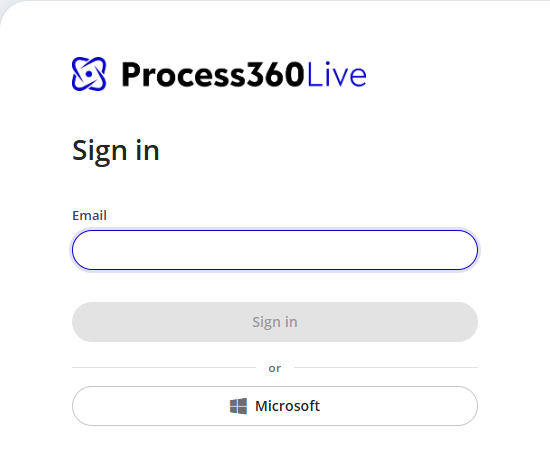

The sign-in page with the Microsoft button below the Email field.

Prerequisites​

  • An Azure AD (Microsoft Entra ID) tenant.

Steps​

Set it up​

  1. Sign in to Azure, search for Entra, and select Microsoft Entra ID.

    Selecting Microsoft Entra ID in Azure.

  2. Copy your Tenant ID.

    Copying the Tenant ID in Entra ID.

  3. Provide the Tenant ID to iGrafx.

Accept permissions​

The first time a user signs in, they're prompted to accept the permissions the application requests.

The iGrafx user consent screen.

An administrator can grant consent for all users — so new users sign in without seeing the consent screen — by selecting the consent checkbox on the initial consent screen and accepting.

The iGrafx admin consent screen with the consent checkbox.

An admin can also grant consent later, from the application management steps below.

Manage the iGrafx Process360 Live application​

Once a user has signed in and accepted the permissions, the iGrafx Process360 LiveProcess360 Live iGrafx's cloud platform for end-to-end process management — combining process design, mining, simulation, and automation in a single environment. application appears under your enterprise applications in Entra ID, where you manage it like any enterprise application.

The iGrafx Process360 Live enterprise application in Entra ID.

  • The Properties blade controls whether sign-in is enabled, whether user assignment is required, and whether the application is visible to users.
  • If user assignment is required, assign access from the Users and groups blade.
  • Grant or revoke admin consent under the Permissions blade.
